Wafer Type Butterfly Valve SS-304 DISC (Lever Operated)

Model : 004

We are a well-established firm that has made its presence in the industry, by manufacturing and supplying Lever Operated Butterfly Valves. These valves are used for water supply, wastewater treatment, fire protection and gas supply. We manufacture these valves at our sound production unit using high quality materials. These are highly demanded in chemical & oil industry, fuel handling systems and power generation industry. Lever Operated Butterfly Valves are easier to operate and reduce in faster opening and shut-off. We offer these valves at reasonable prices.

Features :

  • Easy to install
  • Rugged construction
  • Can withstand high pressure

Send Enquiry

Specification

Valve Size (mm) Specification (mm)
L H1 H2 D N P
40 215 106 75 40 64 50
50 215 115 82 50 64 50
65 215 128 88 60 64 50
80 265 124 94 65 90 70
100 265 144 113 80 90 70
125 265 167 131 100 90 70
150 265 190 139 125 90 70
200 345 236 167 150 90 70

Detail

Name Description Standard
Body C.I. IS 210
Seat SG IRON / SS-304
Main Shaft S.S. ASTM A276 TYPE 410
Body Liner NITRILE / EPDM
Lower Spindle S.S. ASTM A276 TYPE 410
Toflon Bush PTFE

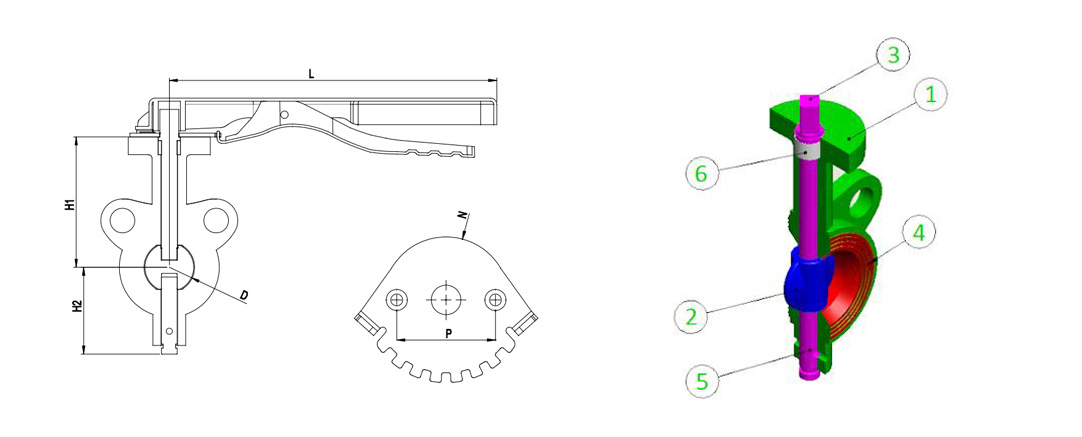

Drawing
